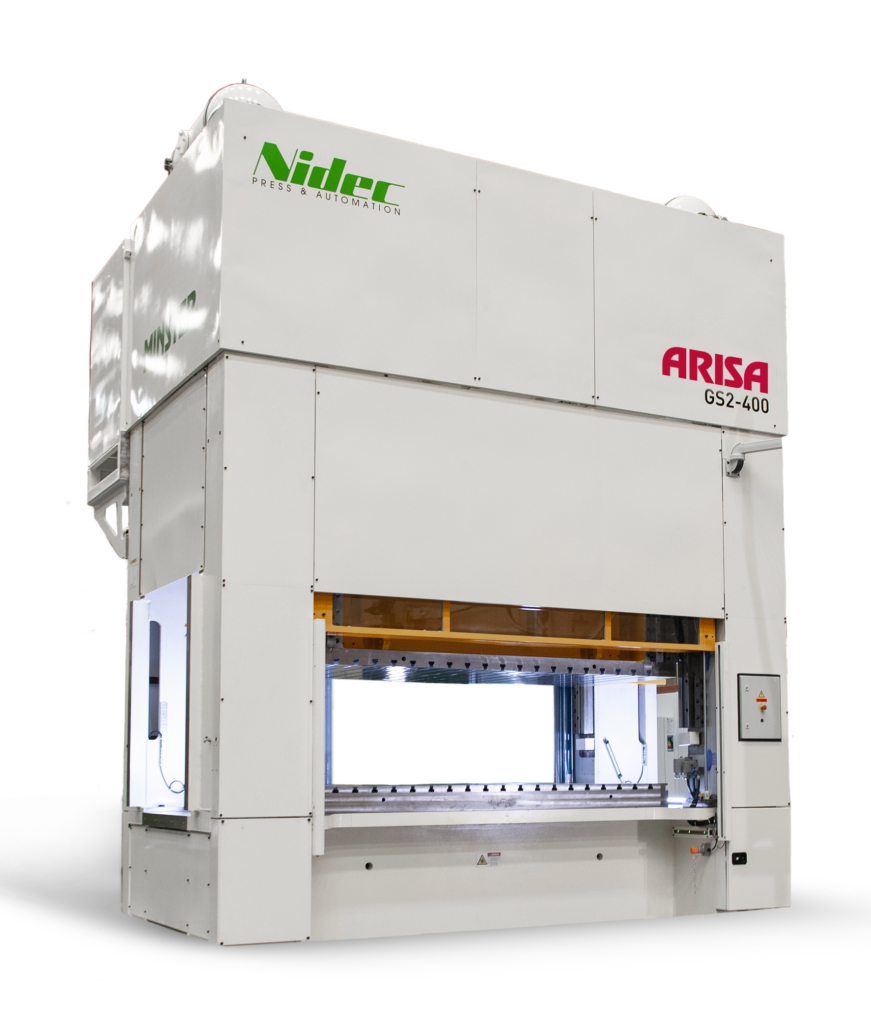

GS2
With capacity ranging from 315-800 tons capacity, the Arisa Global Servo Press (GS2) Series offers proven servo technology, performance, and flexibility.
The GS2 was designed in collaboration with Nidec Press & Automation’s global technology resources, which represents nearly 400 years of combined metal forming experience.
- Eccentric Gear
- Straightside Servo Presses
- 3150-8000 kN Capacity
- Up to 105 SPM
Features
The GS2 servo press series offers:
- Precision Kinematics Enabling Quicker System Response and Higher Production Rates
- Eccentric Wheels with Double Helical Gearing for Smooth Operation, Increased Power Transmission and Higher Durability
- Desch Planetary Gearbox Reduces the Drive Train Inertia for Quicker Acceleration and Faster Stopping Times
- Robust Design Ensures Years of Trouble-Free Operation and Lowest Overall Cost of Ownership
- Siemens Full Energy Management System Provides Maximum Energy Efficiency and Lowest Power Cost Per Part
- Zero Clearance Slide Guiding Improves Die Setup and Operation
- Liquid-Cooled High-Torque Servo Motor
- Electronic Tool Storage
- Hydraulic Overload
- Temperature Monitoring
- 16 Programmable Limit Switches
- 16-Die Protection Channels
- Automatic Counterbalance Control
- Electronic Shutheight Control
- Powered Die Doors (Front and Rear)
- Front Light Curtains
- Die Area Lights
- Automatic Shutheight Adjustment
